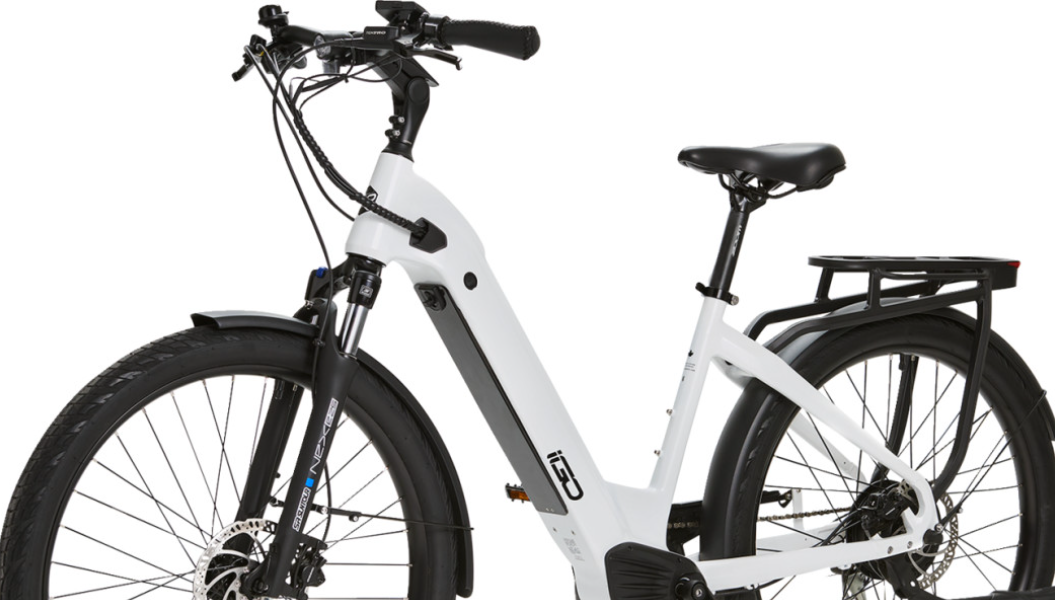

IGO ELECTRIC BIKES, Step Through-Discovery LE E-Bike

IGO ELECTRIC BIKES, Step Through-Discovery LE E-Bike

$2,599.00
$2,599.00
Sale Sold out
Color
  • Programmed to be 'multi class switchable', this #1 feature allows parameters to be instantly reconfigured at the touch of a button to conform to Class 1, 2, or 3 regulations
  • Easy to mount frame with ERGOFIT design for maximum versatility and comfort
  • Effortless control and enhanced safety and security features allow freedom to simply enjoy the ride perfect introduction to active transport, well suited for everyday use
  • With up to 55 Nm of torque, the 500 W throttle enabled motor system delivers a safe, consistent and dependable riding experience
  • 720 Wh removable integrated battery with security lock providing up to 56 mi* range ready everyday with plug and play charging and all day range
  • Pedal assist segments Eco/Tour/Sport/Turbo/Boost user programmable and seamless intelligent riding experience
  • iGO Electric Bike Collection
  • iGO At a Glance
  • Frameset

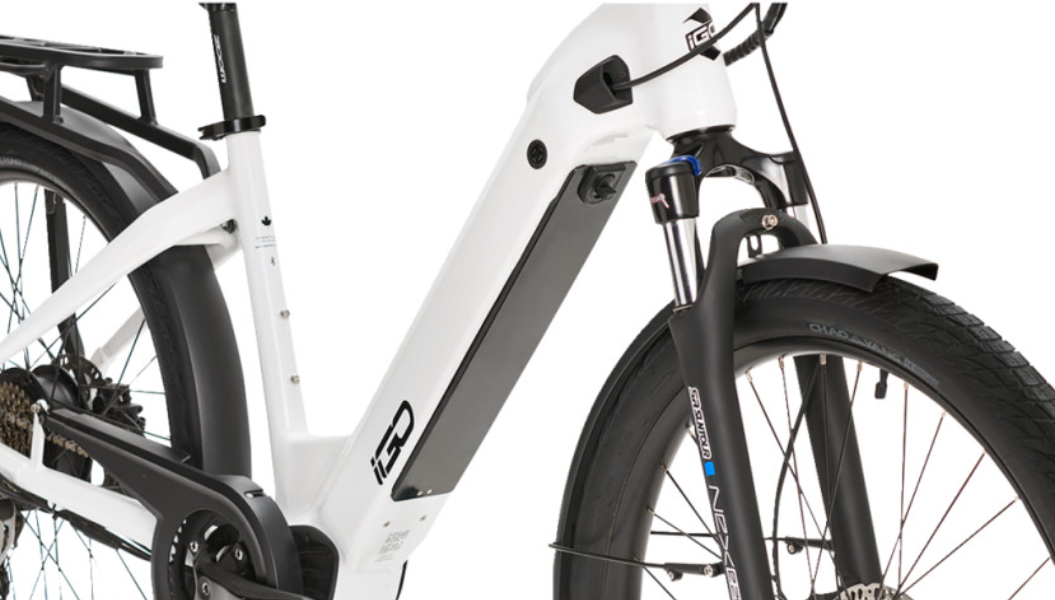

  • Frame Hydroformed Alloy, 27.5" ERGOFIT frame, internal cable routing head tube ported, removable down tube battery with security lock, accessory ready rear cargo rack
  • Fork RST VOLANT 700C, 80 mm travel, lockout with quick release
  • Drivetrain
  • Shifters SHIMANO ALTUS 8-speed

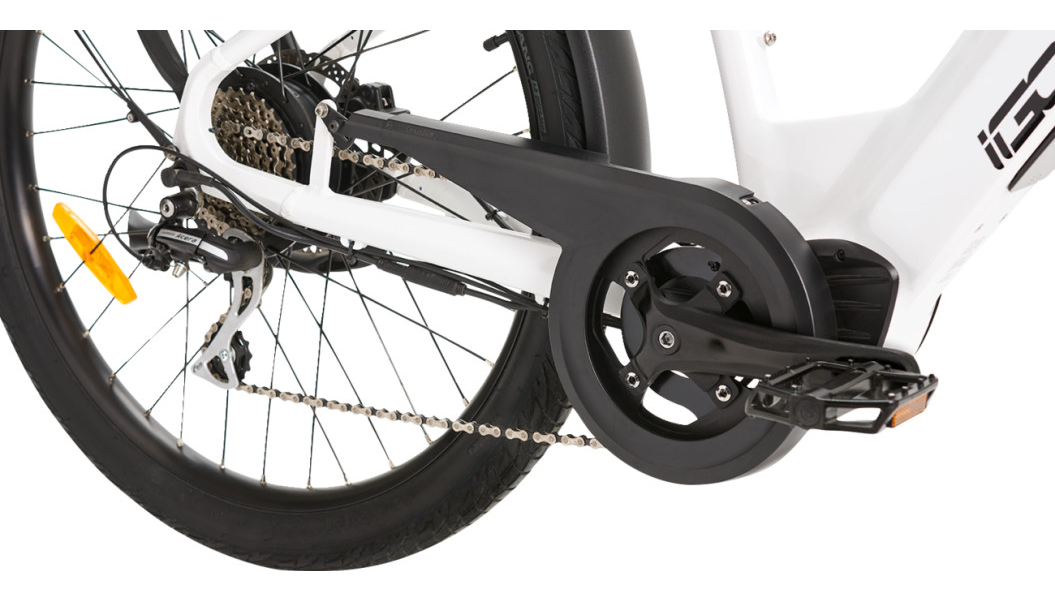

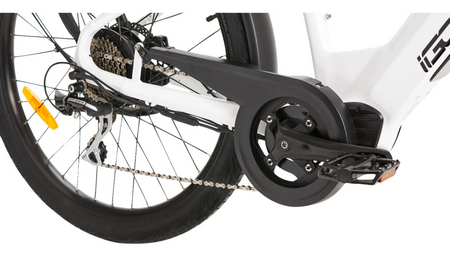

  • Chainrings 42T with Narrow Wide teeth
  • Chain KMC E8-S
  • Rear Derailleur SHIMANO ACERA 8-speed
  • Cassette SHIMANO ACERA 8-speed 11-32T
  • Components
  • Handlebar 630 mm, 21 mm rise, 31.8 mm diameter
  • Grips VELO, Ergonomic, 135 mm
  • Stem Toolless adjustable threadless with 0 to 90 rise
  • Seat Post 31.6 mm (350 mm)
  • Saddle SELLE ROYAL Rio
  • Brake Levers TEKTRO HDE350 with power cut off switch
  • Brake Calipers TEKTRO HDE350 Hydraulic Disc
  • Rotors 180 mm
  • Wheels
  • Tires CHAOYANG 27.5 x 2.4
  • Rims 27.5, Dual Wall Alloy, black
  • Electric Technology
  • Bluetooth iGO Mobile App (Android and iOS). Customizable profile and performance settings with full diagnostic monitoring and alerts
  • Display Unit 2 HD High Brightness IPS Color LCD Display, Ergonomically Designed Buttons, IP65 Waterproof, Password Protected Power On Option, USB Charging Port, Light Auto On/Off Option (Ambient Light Detector), Interface Color Coded Display Reference (for Quick Glance Safety), Main Power/PAS Control/Ride, Stats and Settings Toggle, PAS Level/Battery/Power/Clock, Speedometer/Max Speed/Avg Speed, Trip Distance, Battery Voltage/Capacity Percentage/Range/Accumulated Charging Cycles, Motor Power Output Average/Maximum, Ride Analysis Statistics, Diagnostic and Warning Information, Walk Assist

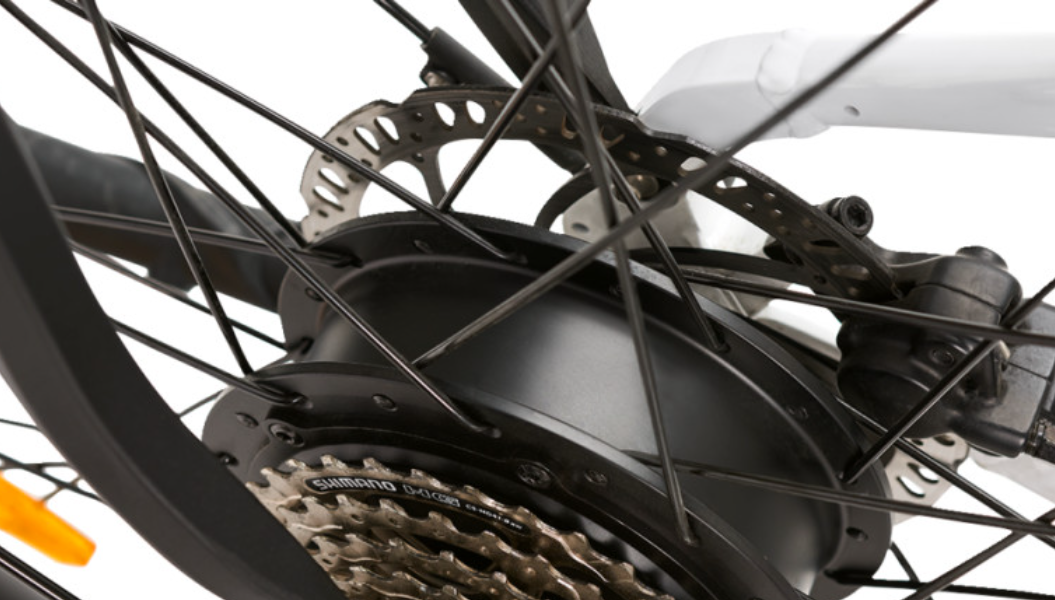

  • Motor iGO DRIVE LE 500W geared rear hub motor, 48V
  • Torque up to 55 Nm

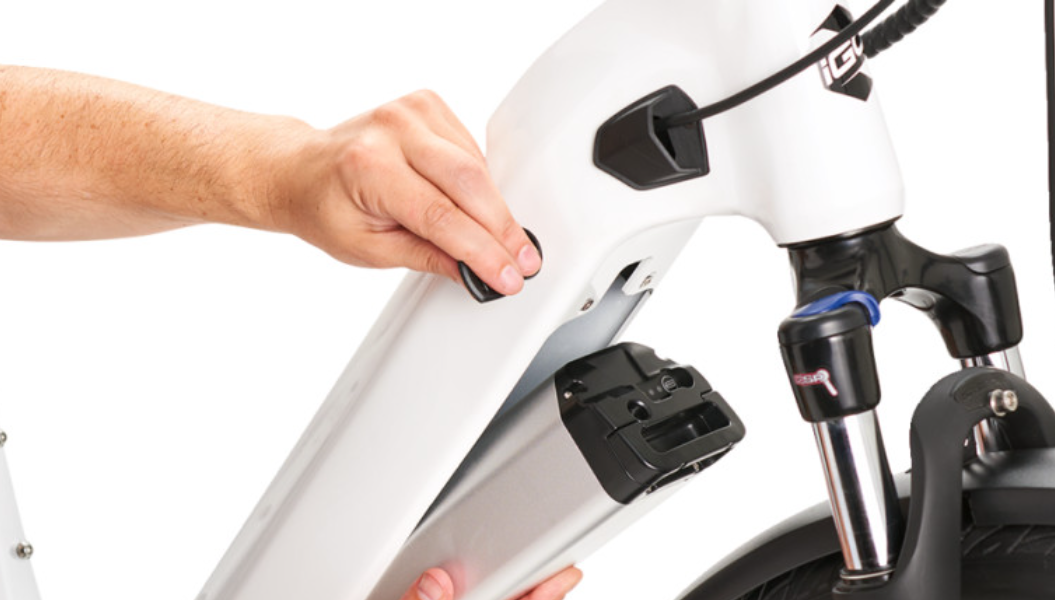

  • Battery 5000mAh SAMSUNG cell, removable with security lock (48V | 15Ah | 720Wh)
  • Range 69 mi*
  • Pedal Assist System Eco/Tour/Sport/Turbo/Boost color coded per PAS level
  • Throttle On-Demand, Removable
  • Sensor Electronic 32 pulse Cadence Sensor integrated into the bottom bracket
  • Class Class 2 Model, configurable to Class 1 or Class 3 capable where permitted**
  • Accessories Included

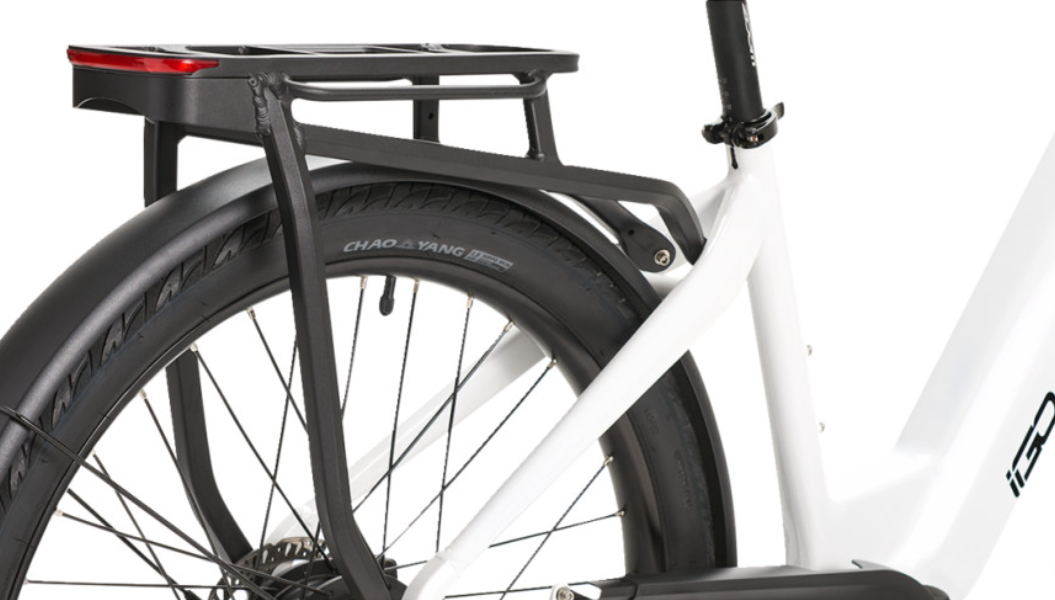

  • Front LED light XC-259A (powered by main battery), Rear LED SPANNINGA LED Commuter Glow XE with brake light Integrated into rear rack (powered by main battery), Front & Rear, Fenders, Rear Cargo Rack Accessory ready, Integrated Chainring Guard, Water Bottle Bosses on Seat Tube, Kickstand, Wellgo Pedals, Bell, Tool Kit, Battery Charger
  • Notes
  • Battery Weight 7.7 lb
  • Weight Capacity 275 lb
  • *Actual range may vary depending on Ah of battery rider weight and other riding conditions. Specifications subject to change.
  • **Class Regulations: Class 1 (Pedal assist motor with maximum assisted speed 20 mph, Class 2 (Pedal assist motor and throttle with maximum assisted speed 20 mph), Class 3 (Pedal assist motor with maximum assisted speed 28 mph. Throttle will work up to 20 mph).
