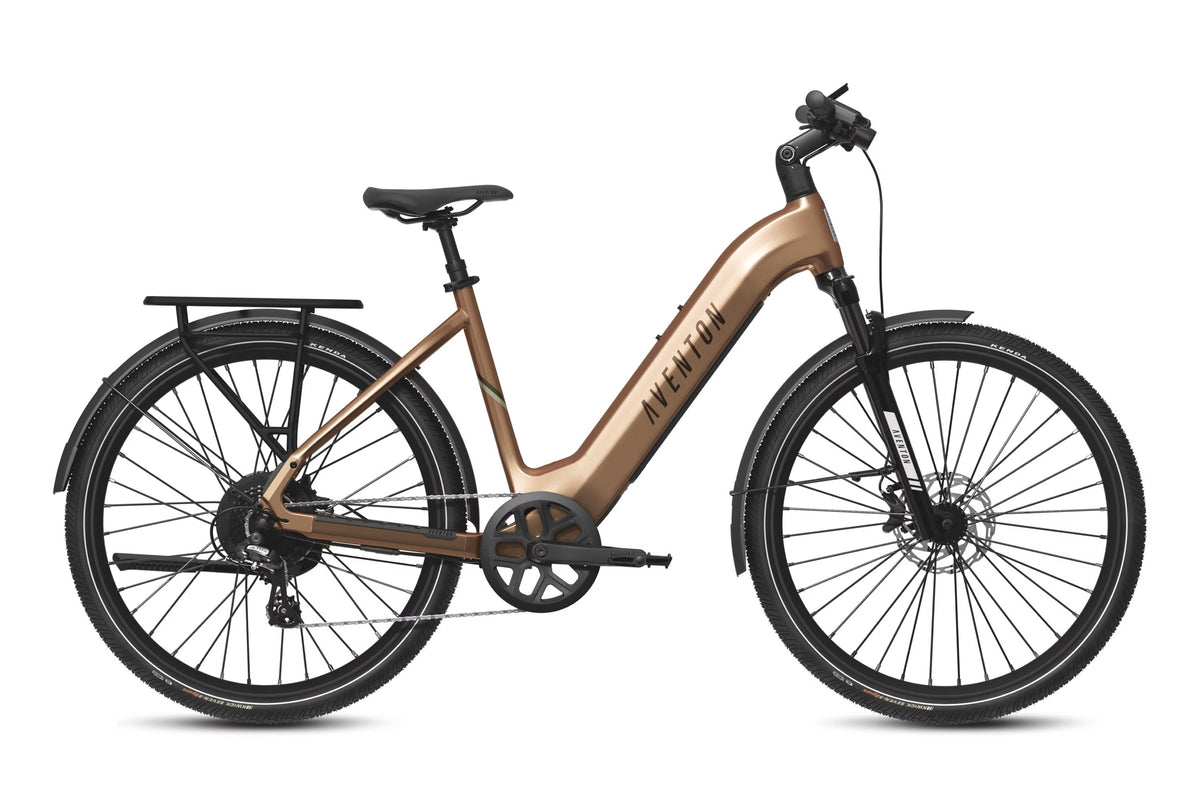

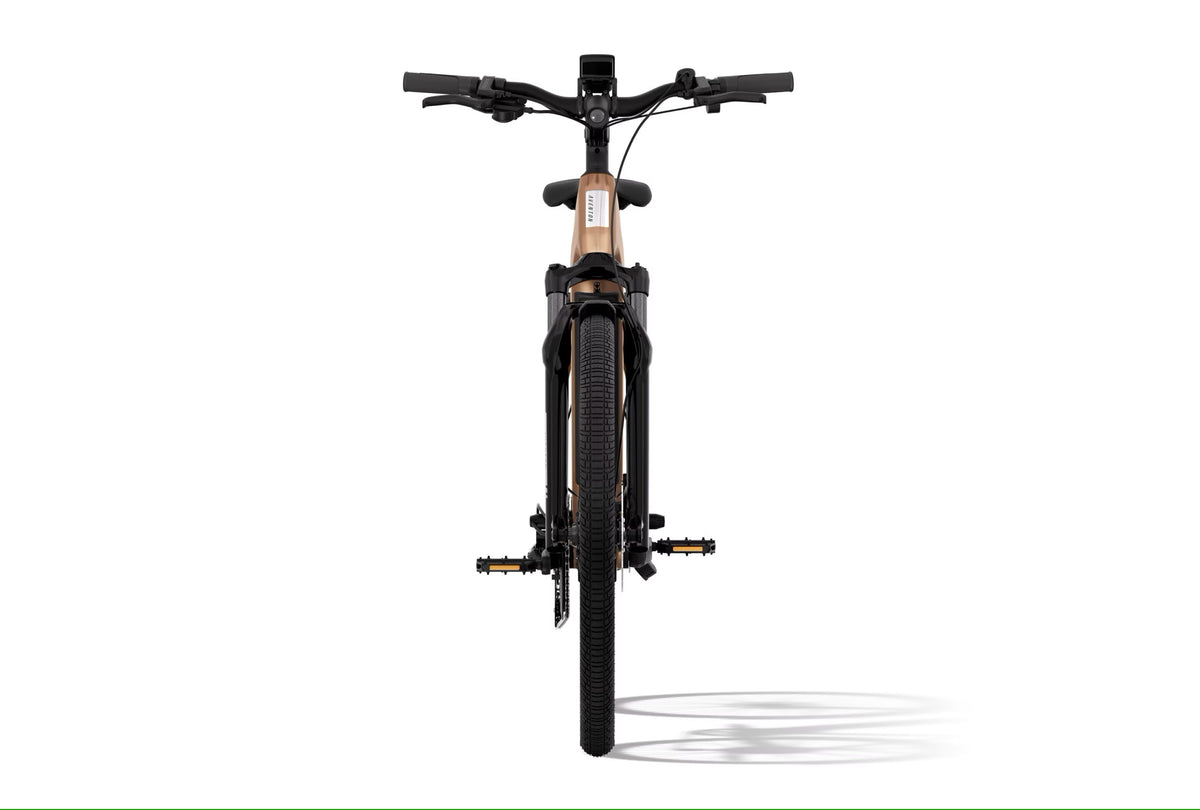

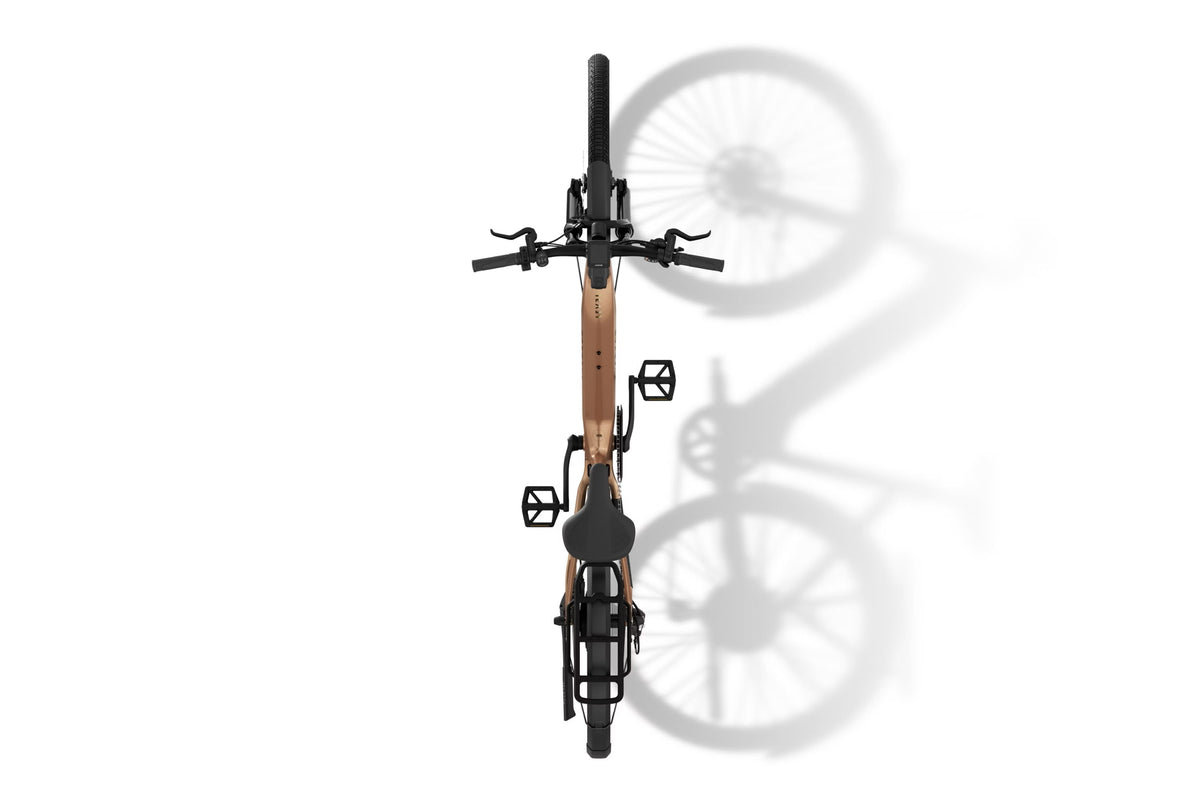

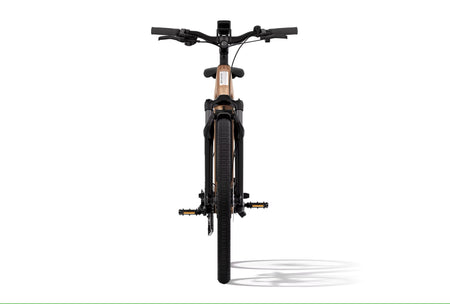

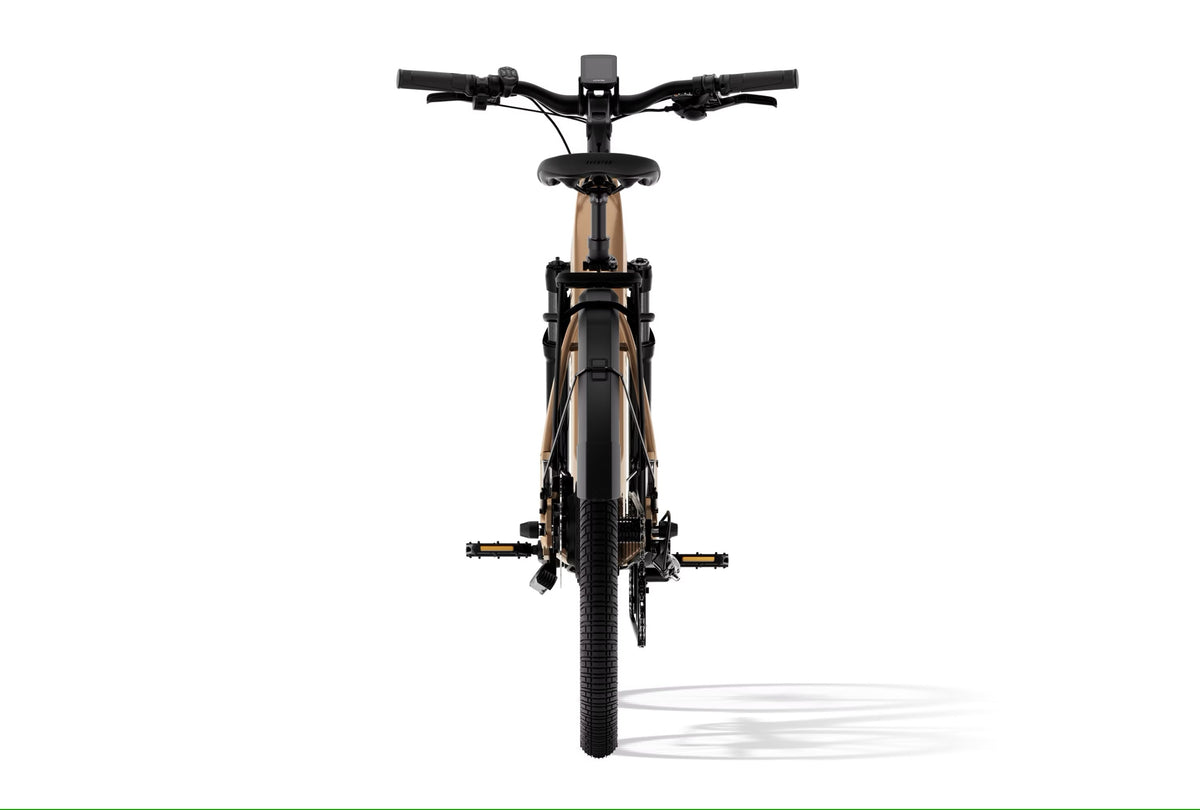

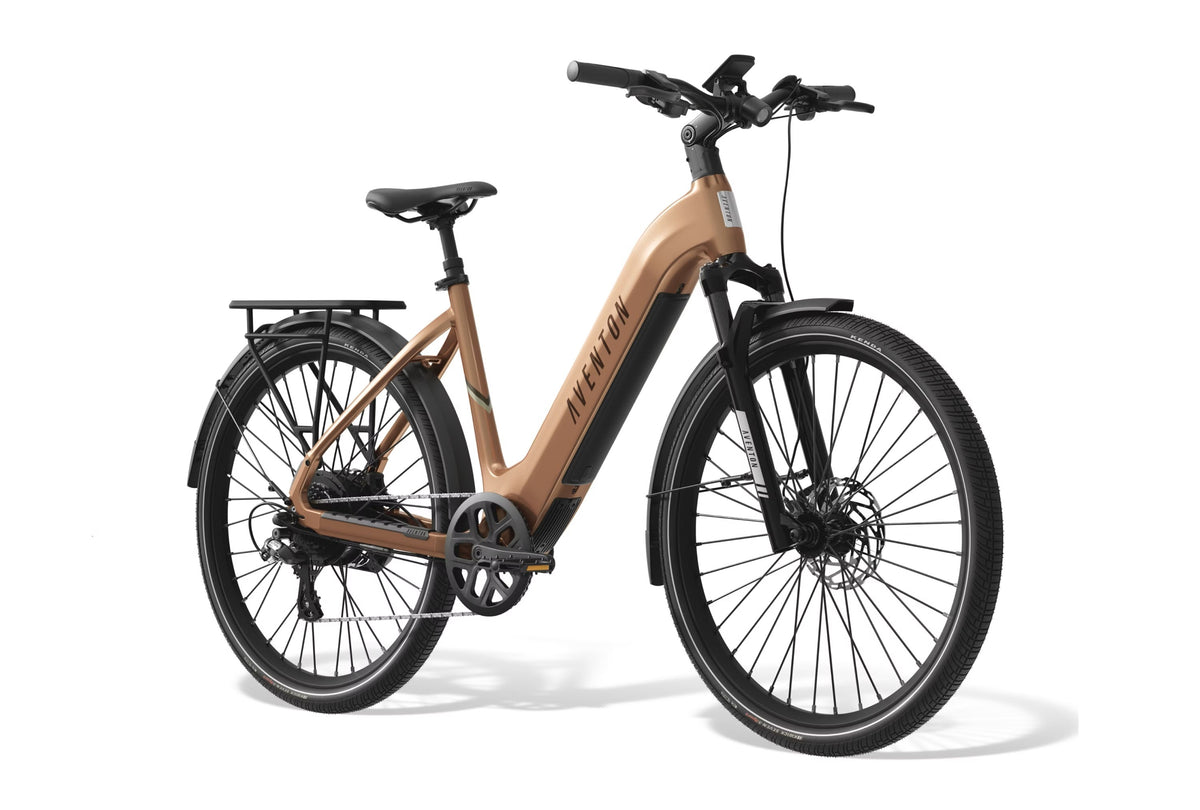

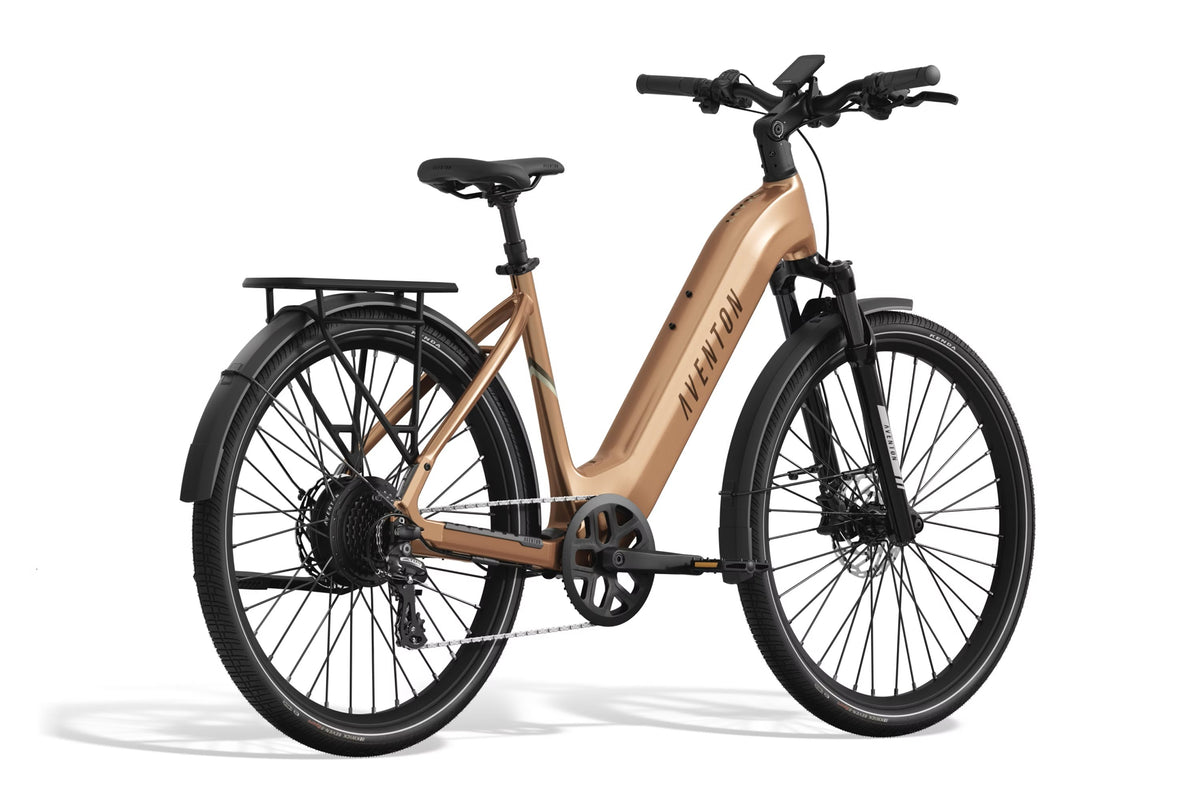

AVENTON Level 3 Step Through Commuter Ebike

AVENTON Level 3 Step Through Commuter Ebike

Regular price $1,899.00
Regular price Sale price $1,899.00
Sale Sold out
SIZE

*Sandstone*

Turn daily drives into daily rides with this do-it-all commuter

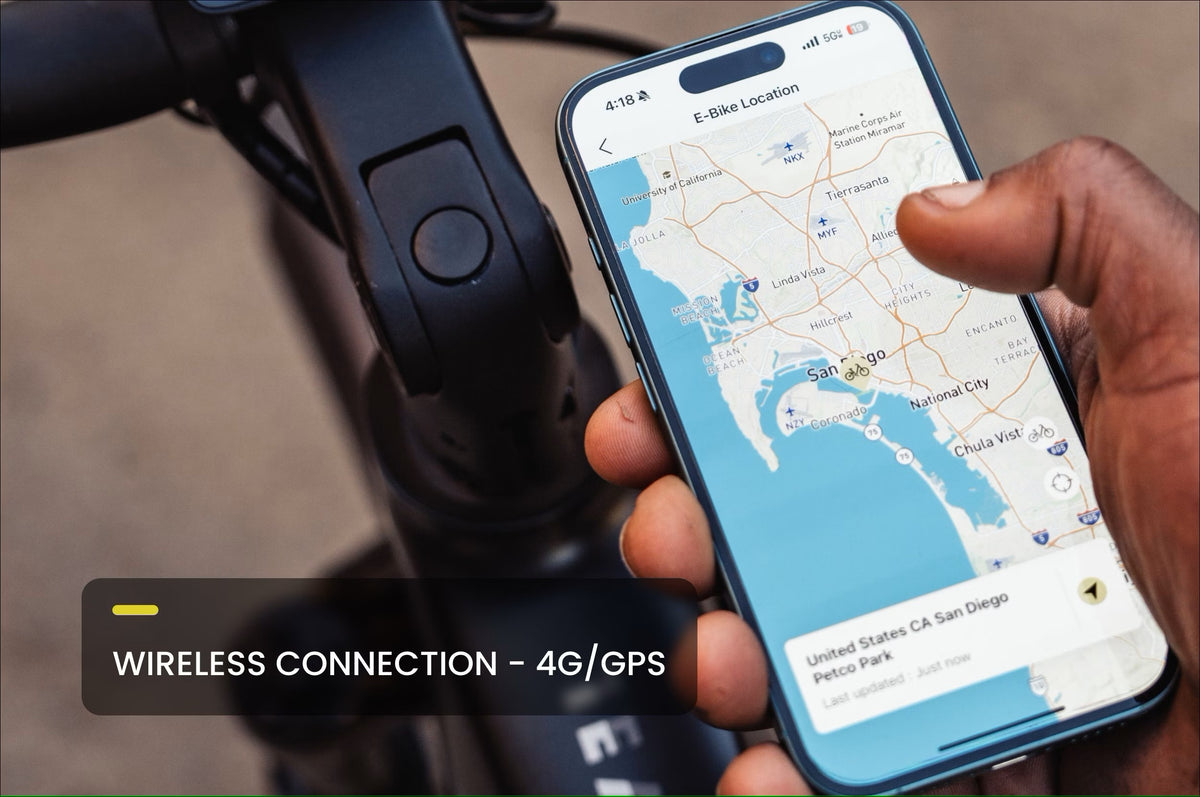

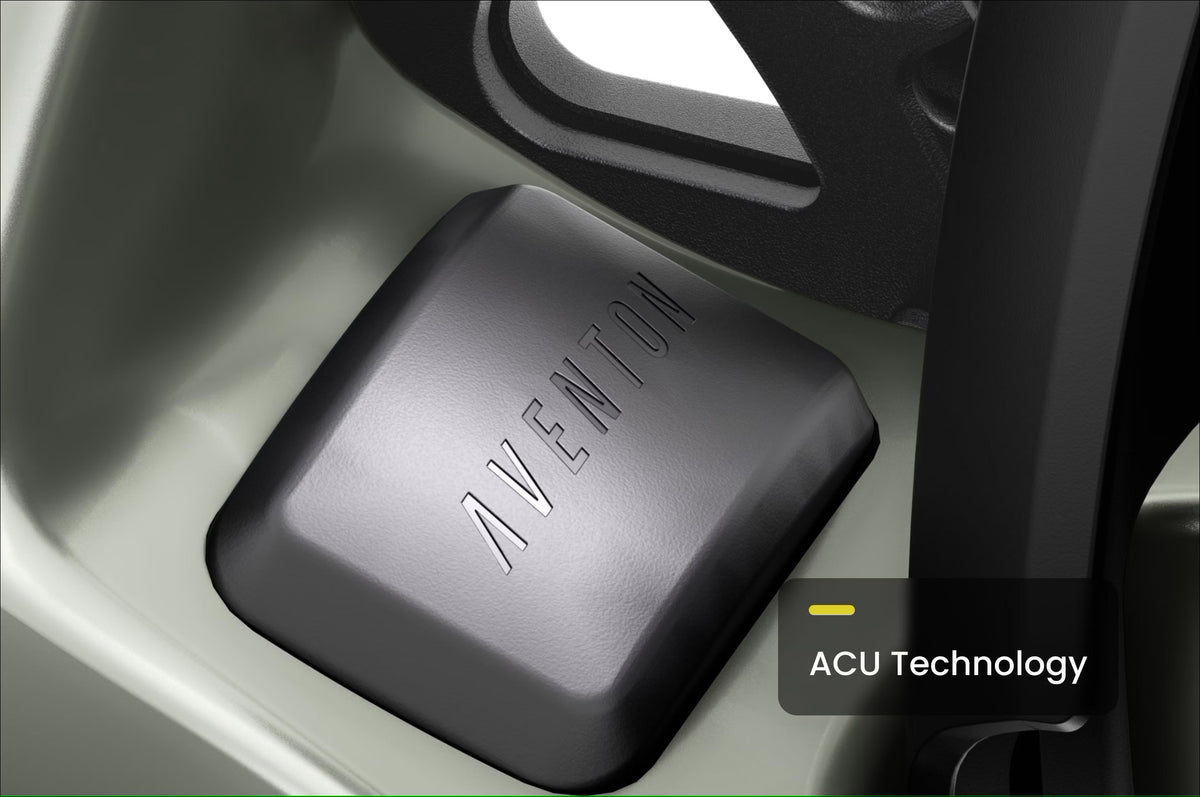

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3

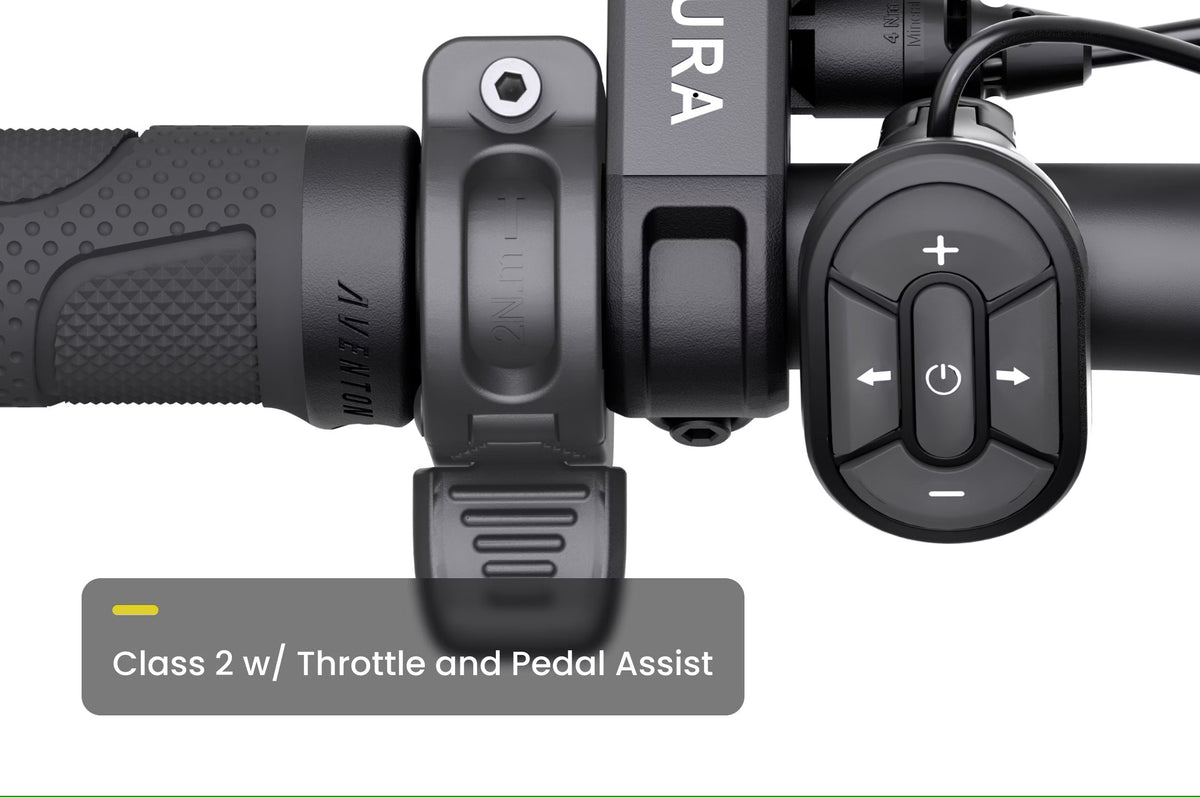

The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.

General Info

Model

Level 3 Step Through Commuter Ebike

Weight

67lbs

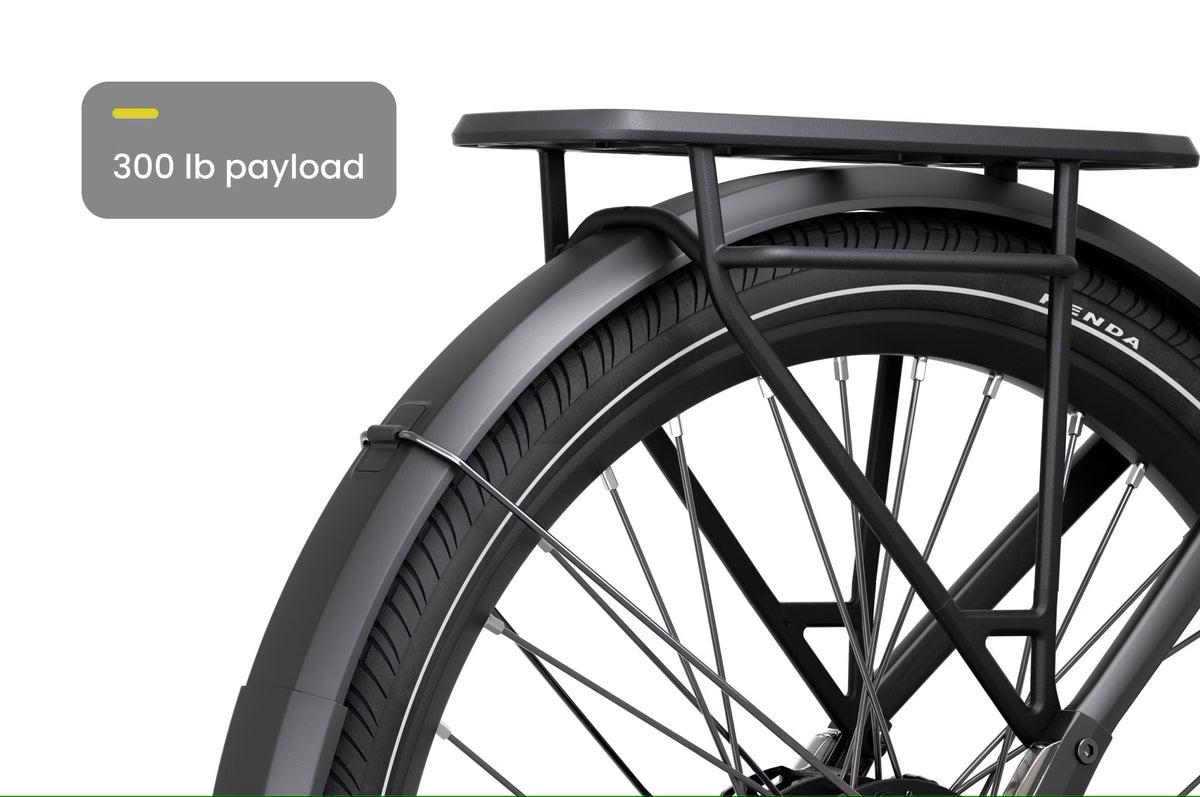

Total Weight Limit

300 lbs

Box Size

61"x13"x34"

Rider Height

4'11" - 6'1"

Class

Class 2 Ebike

Water Resistance

IPX4

Range

Up to 70 Miles

Battery Safety Certifications

Certified to UL 2271

Safety Certifications

UL Safety Certified UL 2849

Frameset

Frame

6061 Aluminum, Gravity Cast Front Triangle

Fork

Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset

Rear Spacing

142mm

Fork Spacing

110mm

Wheelset

Front Wheel

27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black

Rear Wheel

27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black

Tires

Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

Ebike System

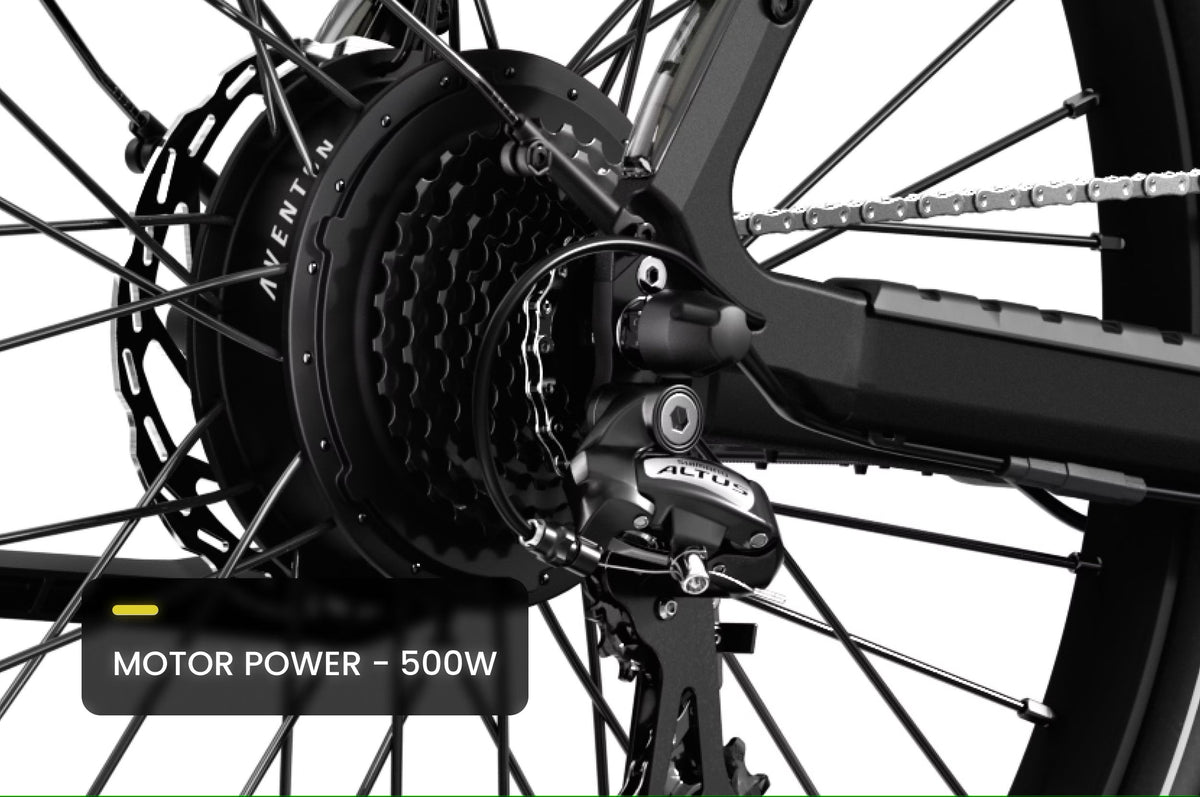

Motor

36V, 500W (sustained), 864W (peak)

Motor Torque

60Nm

Display

Aventon BC280

Battery

Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight

8.7lbs

Controller

36V, 24A

Throttle

Aventon LH Handlebar Mounted

Sensors

Double Sided Bottom Bracket Torque Sensor

Charger

36V Output: 42V/ 4A

Charging time from 0% to 100%

5 hours

Lights

Front and rear lights integrated

Brakes

Front Brake

Magura AT-2 Hydraulic disc brake

Rear Brake

Magura AT-2 Hydraulic disc brake

Front Brake Rotor

Magura MDR-A 180mm 6 Bolt Rotor

Rear Brake Rotor

Magura MDR-A 180mm 6 Bolt Rotor

Drivetrain

Rear Derailleur

Shimano Altus RD-M310

Shifter

Shimano 8 Speed Trigger SL-M315-8R

Chain

7/8 speed 120L

Cassette

12-32T / 8 Speed Shimano CS HG200-8

Chainring

48T

Chainring BCD

104

Crankset

3pc, 170mm crank arm

Bottom Bracket

Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

Pedals

9/16" Composite Platform

Cockpit

Saddle

Aventon Saddle

Seatpost

30.9mm Aventon Suspension Seatpost with 50mm travel

Seatpost Clamp

34.9mm

Handlebars

Aluminum 31.8mm, 680mm

Grips

Aventon Lock on grips

Headset

Sealed Bearing Headset

Included Accessories

Rear Rack Weight Limit

60lbs
